Zorastra supplies 51.2V/100Ah LFP battery modules, off-grid solar kits, and solar water pumps for distributors, integrators, and EPCs across Thailand. Every product ships with full Thai Customs-ready documentation and ASEAN-China FTA support.
Every product is tested for tropical environments — high humidity, 35°C+ ambient, and grid-unstable areas. IP55 enclosures standard on all battery modules.
Wall-Mounted · 5.12 kWh
Wall-Mounted · 10.24 kWh
Stackable Module · 5.12 kWh
3kW + 5.12kWh + 6×550W Panels
5kW + 10.24kWh + 10×550W Panels
10kW + 20.48kWh + 20×550W Panels
1.5kW AC · 120m Head
| Electrical | |
|---|---|
| Nominal Voltage | 51.2V DC |
| Nominal Capacity | 100Ah / 5.12 kWh |
| Voltage Range | 44.8–57.6V |
| Max Continuous Discharge | 100A (1C) |
| Peak Discharge (30s) | 150A |
| Round-Trip Efficiency | ≥95% |
| Battery & BMS | |
|---|---|
| Cell Chemistry | LiFePO₄ (LFP) · Premium Grade-A Cells |

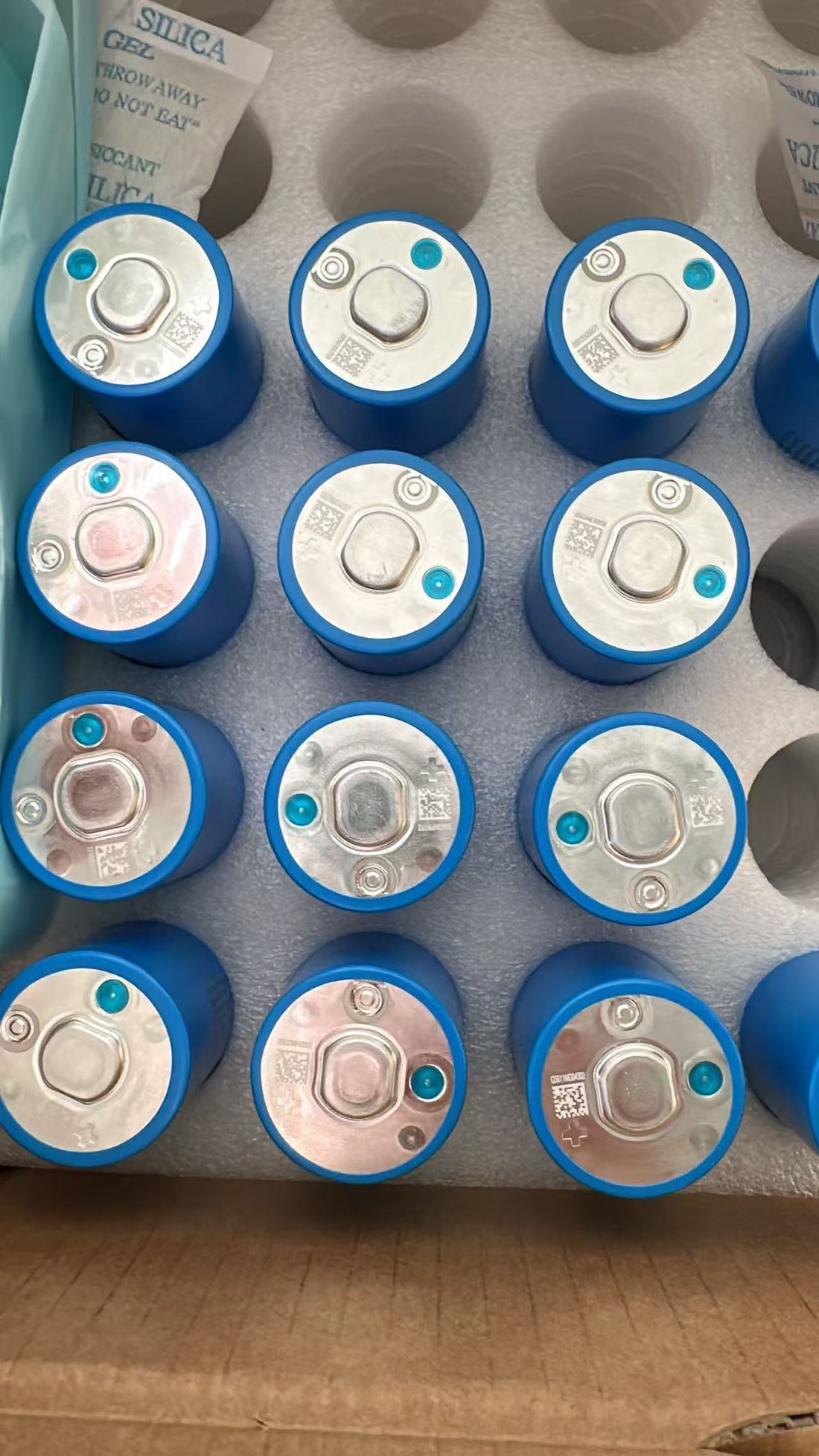

| Cell Configuration | 16S1P (3.2V/100Ah Grade-A LFP cells) |
| Cycle Life | ≥5,000 Cycles @ 80% DoD, 25°C |
| BMS | Adaptive Smart BMS · active balancing · OV/UV/OT protection |
| Communication | CAN 2.0B · RS485 · Optional: RS232 |
| Parallel Support | Up to 16 modules in parallel (81.92 kWh) |
| Mechanical & Environmental | |
|---|---|
| Dimensions (W×D×H) | 540 × 440 × 180 mm |
| Weight | ~45 kg |
| Enclosure Rating | IP55 |
| Operating Temperature | 0–55°C (charge) · -10–60°C (discharge) |
| Humidity | 5%–95% RH, non-condensing |
| Cooling | Natural convection |
| Certifications & Thailand Info | |
|---|---|
| Safety | UN38.3 · IEC 62619 tested · CE |

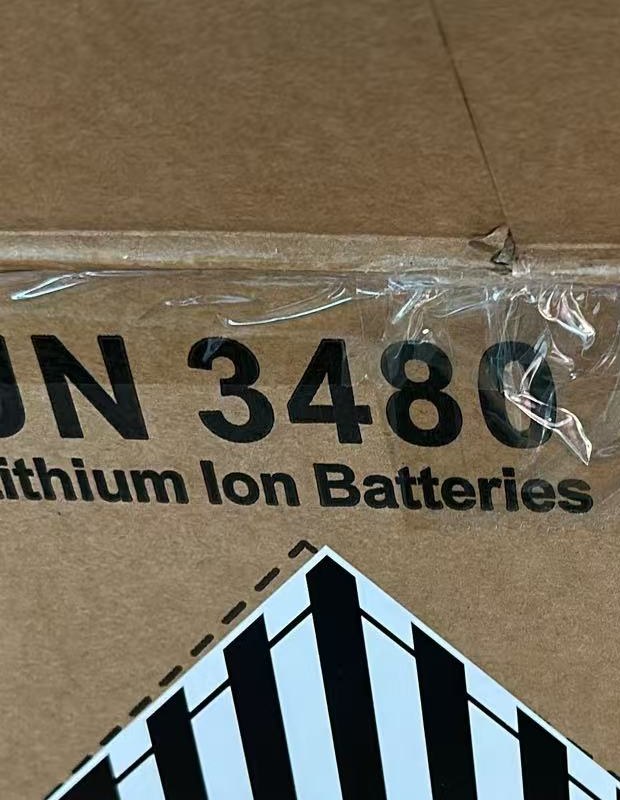

| Transport Class | UN 3480, Class 9 (DG) |
| Thailand HS Code | 8507.60 · 0–5% duty under ASEAN-China FTA |
| Warranty | 3 years standard · 5 years optional |
| MOQ | 5 units (sample) · 20 units (regular) |
| Shipping to Bangkok | 5–7 days sea freight (Laem Chabang) |
We are a professional B2B supply chain integrator. We configure high-quality systems and components based on each client’s market and requirements — especially high-cycle-life LFP batteries, adaptive BMS, versatile inverters, and matched PV modules — and manage the entire process from procurement to inspection to export and even logistics. What you get is a one-stop solution with quality assurance, after-sales support, fast shipping, and genuine competitive advantage in your market.
Designed for the specific energy challenges and opportunities across Thailand.
Wall-mounted battery + hybrid inverter for Thai homes. Reduce electricity bills with TOU optimization and backup during grid outages.
Complete off-grid solar kits for farms without reliable grid access. Solar water pumps for irrigation without diesel.
Stackable battery banks for shops, restaurants, and small factories. Peak shaving to lower demand charges.
Reliable 51.2V DC backup for telecom towers in remote or grid-unstable regions. IP55 rated for outdoor installation.
MOQ is 5 units for sample orders, 20 units for regular orders. We encourage customers to start with a sample batch to verify compatibility with your inverters and local requirements before scaling.
Yes. The module uses standard CAN/RS485 communication and 51.2V DC output, compatible with most major hybrid and off-grid inverter brands (Deye, Growatt, Victron, SRNE, MUST, SMA, Sungrow). We provide protocol documents and recommend SRNE or MUST for off-grid, Deye or Growatt for hybrid systems.
Lithium battery modules typically fall under HS code 8507.60. Thailand applies 0-5% import duty under ASEAN-China FTA (Form E certificate required). We prepare all documentation for smooth Thai Customs clearance.
Yes, OEM branding is available for orders of 50+ units. Custom logos, color schemes, and packaging can be arranged with lead time of 15-20 days. Contact us for OEM requirements and minimum quantity details.
Standard terms: 30% deposit, 70% balance before shipment via T/T. FOB Shenzhen or Shanghai. Sea freight to Laem Chabang takes 5-7 days. We handle the full export process including booking, DG declaration, and documentation.

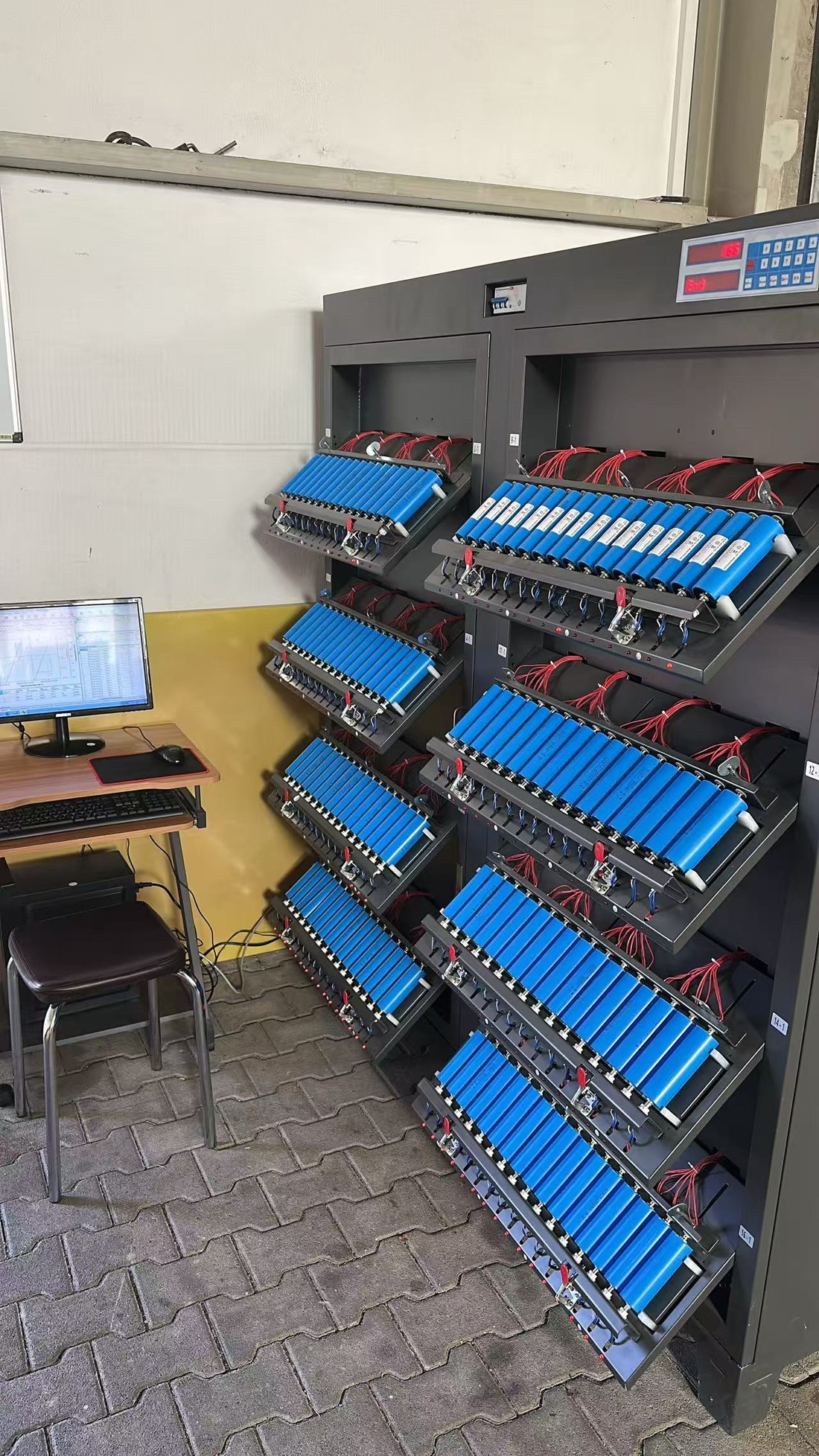

Every module undergoes full charge-discharge cycle testing before packing. We provide a 3-year standard warranty on all battery modules. For quality issues, we require video/photos for assessment and offer replacement or compensation based on root cause analysis.
